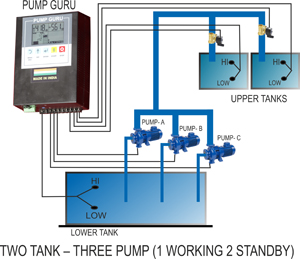

Two Tank- Three Pump (1 Working 2 Standby) |
|
| Product Details |
| Basic Info. |
|
| Model No : Two Tank Three Pump |
Starter Type : DOL / DDOL / Star Delta |
| Signal : Continuous |
Function : Auto & Manual |
| Certification : CE |
Phase : 3 Phase |
| Rated Input Voltage : AC 415V |
Rated Frequency : 50Hz |
| Origin : MADE IN INDIA |
|
| Product Description |
Ease of Operation, Ease of Wiring.
This is used for One Pump operation where all the parameters such as Voltage, Current, Auto/Manual, Water Tank Level & Error Alarms would be displayed with respect to that pump.
User can use LEVEL PROBES or FLOAT SWITCH to measure the level of the Bottom & Top Tanks.
There are 3 Pumps which operate in Cyclic Mode for filling the Top Tanks thus utilizing the pumps with optimization.
Until both the top levels are High the pump would be filling & after it is high both the Solenoid valves would be closed & the pump would stop.
This helps in preventing repeated starts thus protecting the pump. If bottom tank level is High, then only it would fill the TOP Tank. |
| |
|
|
|
|
|
